N20 Electronic Lock Micro Motor 12V Title:
N20 Motor High Speed 10000rpm-45000rpm Micro DC Motors for Toys and Vacuum Cleaner Robot
N20 Electronic Lock Micro Motor 12V Description:
-
Widely used in robot,lock. toy, gun magazine, eye brush,power tools,Toys and Vacuum Cleaner Robot,New Energy Vehicle Electronic Lock,Laser
-
Voltage range:DC 1.5-12V
-
Rated Speed:5000-30000RPM
-
Rotating speed is constant and can be made as you required.
-
Size: 12*15mm, 15mm diamter ,12mm length mini motor
-
Shaft diameter :φ1.0mm
-
Shaft type :Round,D-cut , knurling ect
-
Suitable to small diameter, low noise and big torque application
-
Brush type :Metal/Carbon brush
-
Motor default direction:CW&CCW
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Working temperature:-40~+60°c
-
We can provide samples for your test.
N20 Electronic Lock Micro Motor 12V Key attributes:
Speed(RPM)
3000-30000 rpm
Continuous Current(A)
20-100mA
Place of Origin
Guangdong, China
Model Number
Brush Micro N20 Motor
Use
Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Type
N20 DC Motor 12V 20000RPM
Construction
Permanent Magnet
Protect Feature
Totally Enclosed Product Name
Permanent magnet electric motor
Application
Home Appliance
Motor type
High speed dc mini motor

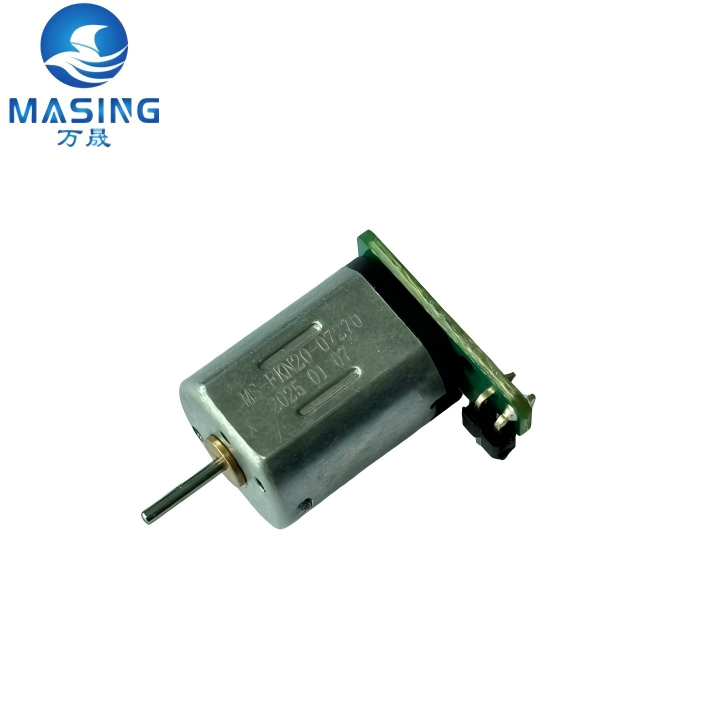

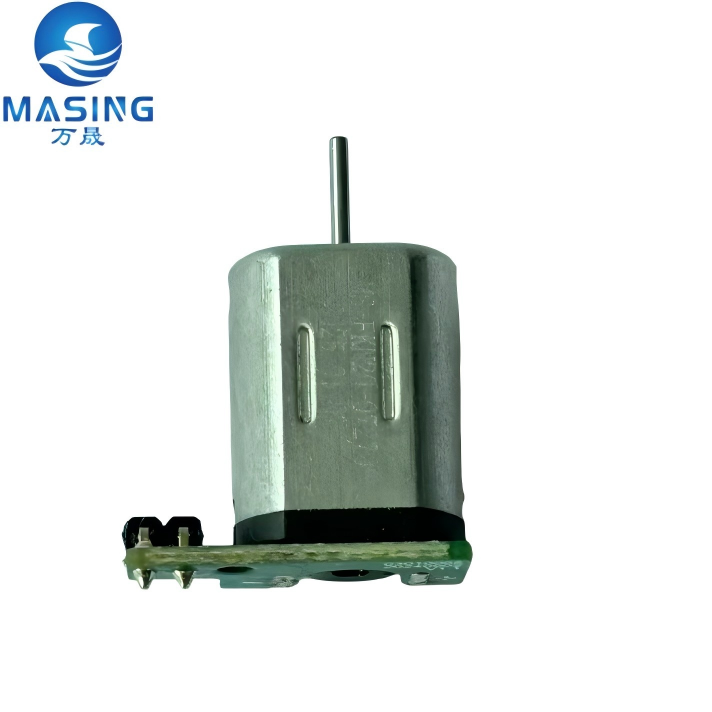

N20 Electronic Lock Micro Motor 12V Product Photo:

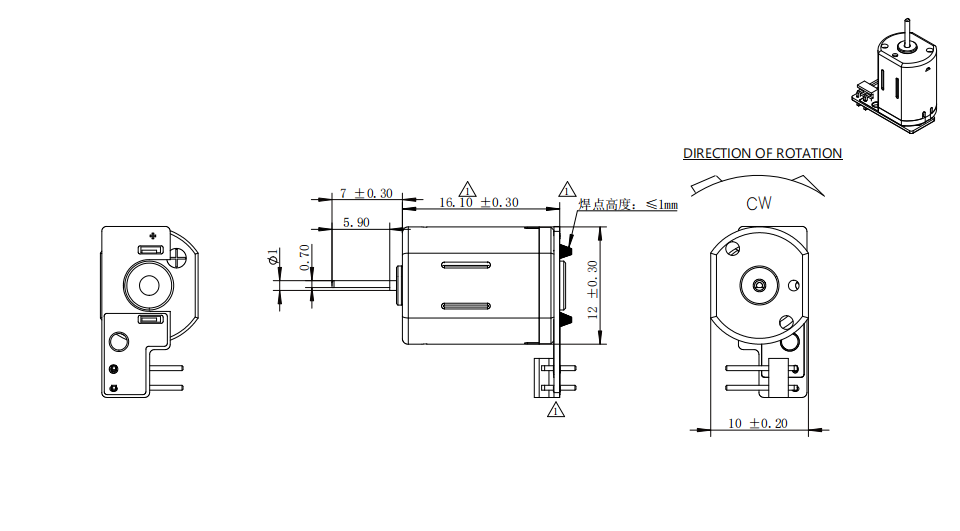

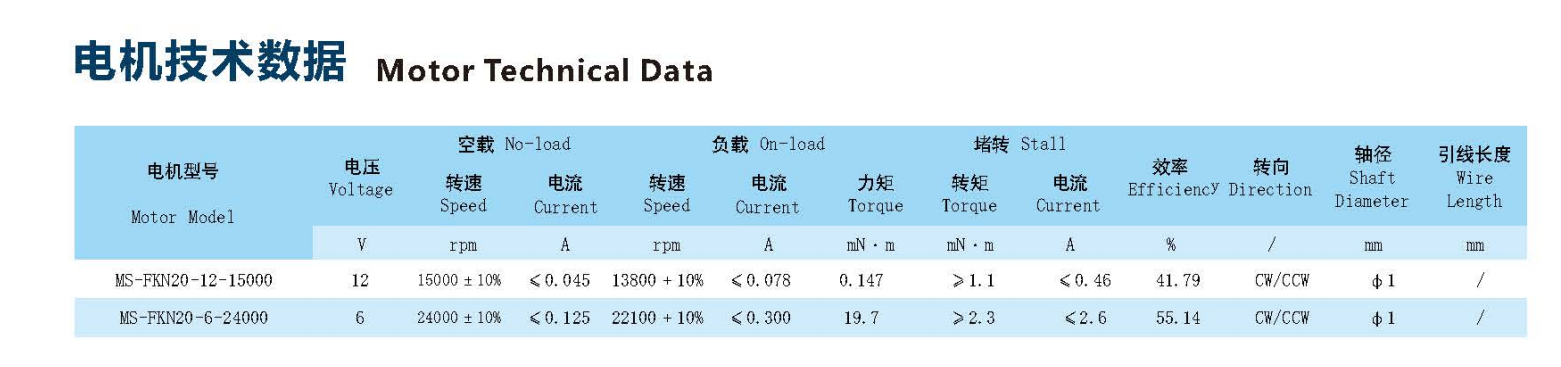

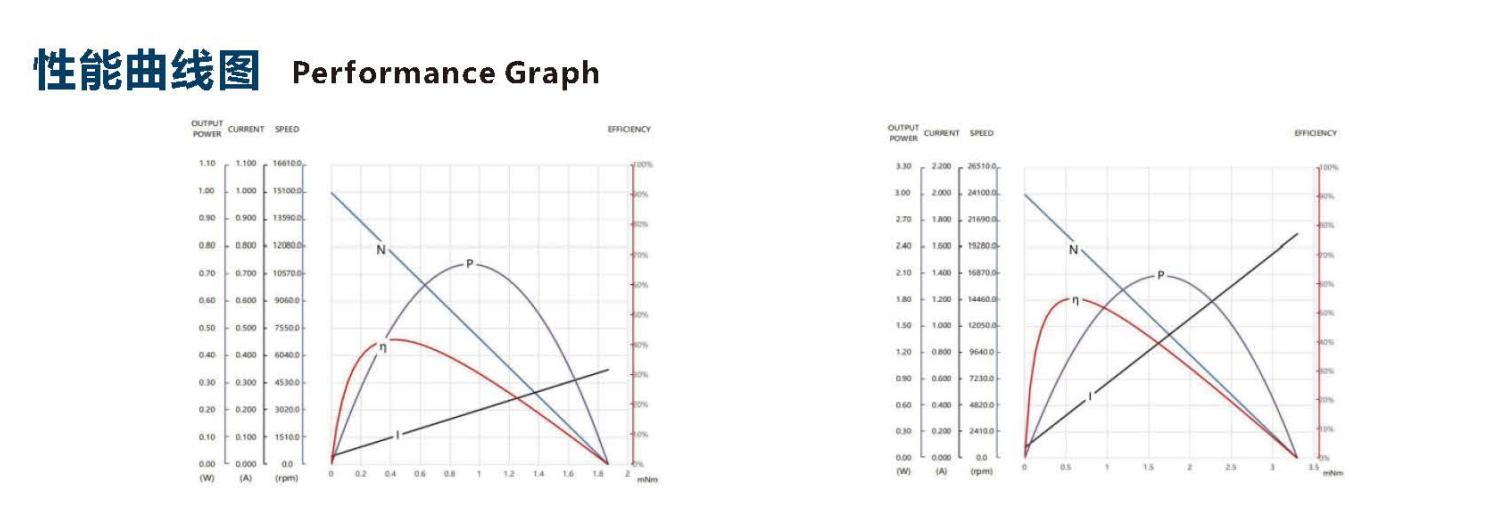

N20 Electronic Lock Micro Motor 12V Product Spec:
FF-N20 DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.
●Office Equipment:Printer,Projector,Counting Machine.
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
Packaging and delivery:
Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
5.0kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Sample price: $1.5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home
Q1: How to select a suitable motor? A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q2: Do you have a customized service for your standard motors?
A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q3:Do you have an individual design service for motors? A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
|
|
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock Images
|
