Small Electric Brushless Dc Motor BL2418 Title:
Small Electric Brushless Dc Motor BL2418 24mm Micro Electric Bldc 12v 24v 5000rpm 8700rpm
Small Electric Brushless Dc Motor BL2418 Description:
-
Widely used in :BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
-
Rated Voltage range:DC 6v-24V
-
Rated Speed:1000-10000RPM
-
Rotating speed is constant and can be made as you required.
-
Size: φ24.4mm*18mm,diamter 24.4mm 18mm Length Small Electric Brushless Dc Motor BL2418
-
Suitable to small diameter, low noise and big torque application
-
Motor default direction:CW&CCW
-
Shaft diameter :φ2.0mm
-
Motor type :Brushless Motor
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Working temperature:-40~+60°c
-
We can provide samples for your test.
Key Attributes:
Rated Speed(RPM)
2000rpm-10000 rpm
Continuous Current(A)
20-200mA
Place of Origin
Guangdong, China
Model Number
BLDC2418 Brushless motor
Use
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Type
Micro Brushless Motor
Rated Torque
5gf.cm-100gf.cm
Construction
Permanent Magnet
Commutation
6v Micro Brushless Motor
Protect Feature
Totally Enclosed Product Name
BLDC2418 Micro DC Motor
Application
Home Appliance Smart House Breast pump
Keywords
2W DC Brushless Motor
Motor type
Brushless Motor DC 12volt
Small Electric Brushless Dc Motor BL2418 Product Photo:

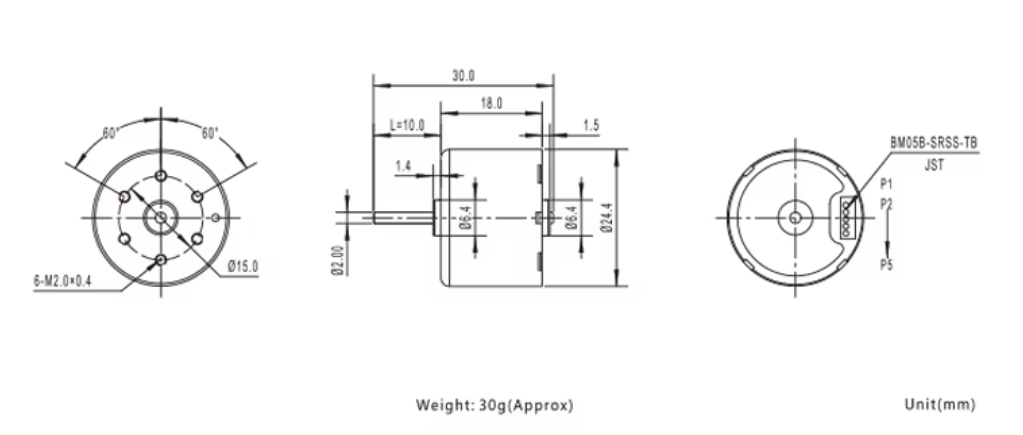

Small Electric Brushless Dc Motor BL2418 Product Spec:
BLDC 2418 Brushless Motor Typical Applications
● BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
| MotorTechnical Data | |
Motor model |
Rated
voltage | No-load | Rated | Stall |
Speed |
Current |
Speed |
Torque |
Current |
Power |
Torque |
Current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| MS-BL2418-126200 | 12.0 | 6200 | 60 | 4943 | 33.6 | 230 | 1.7 | 160 | 0.87 |
| MS-BL2418-248700 | 24.0 | 8700 | 52 | 6817 | 37.4 | 180 | 2.62 | 170 | 0.65 |
Packaging and delivery:
Packaging Details
Strong Carton 250pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
8.0kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1: How to select a suitable motor? A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q3: Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q4:Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q5: How do you make sure motor quality?
A5:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q6: What's your lead time?
A6: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
